Elegoo Mars 4 Ultra 9K 3D Yazıcı (Y42)

Marka : Elegoo
Fiyat : ₺11.922,00(KDV Dahil)
Toplam Stok Adedi : 0
Stok Miktarı : 0
₺11.922,00 'den başlayan taksitlerle



  •

    Product Description



  •

    Comparison Table

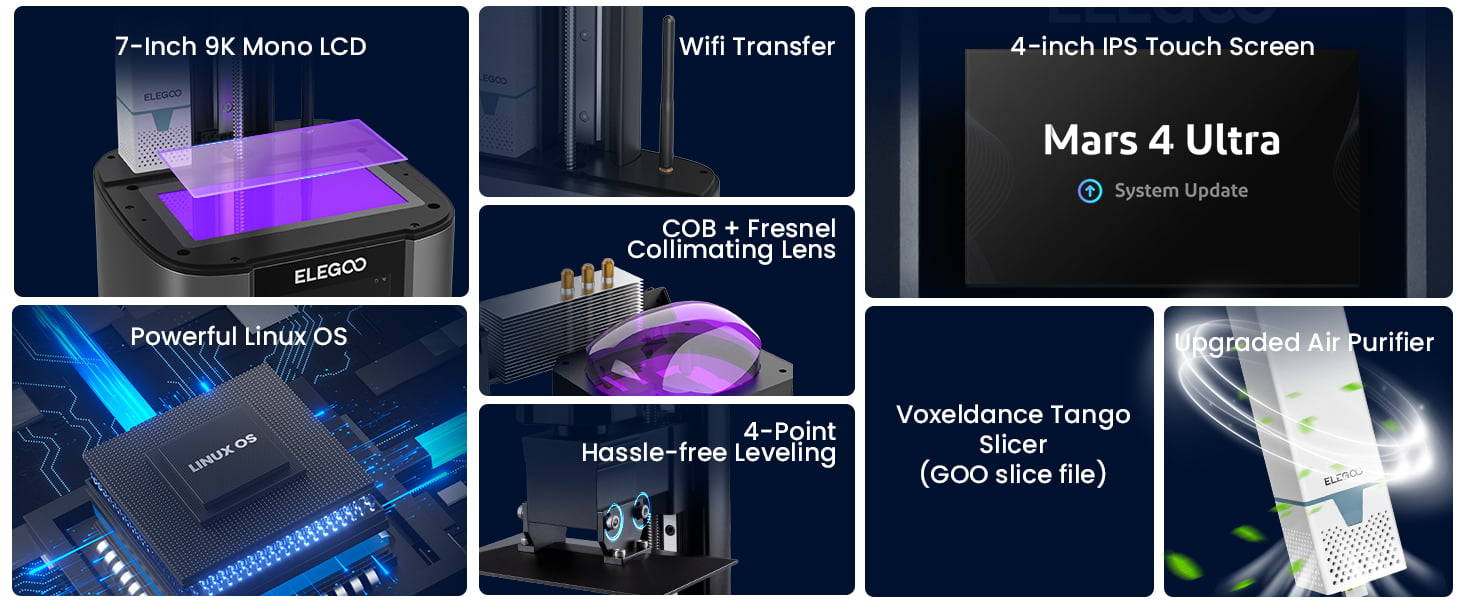

Main Features:











  •  【7-Inch 9K Mono LCD】Equipped with a 7-inch 9K mono LCD offering an impressive 8520x4320 resolution and 18µm XY resolution, Mars 4 Ultra allows you to print incredible complex models with crisp details. The mono LCD is protected by a 9H hardness tempered glass, ensuring it withstands daily wear and tear while maintaining optimal performance.
  • 【Powerful Linux OS】With built-in 4G RAM and no more delay loading files, the Linux operating system ensures faster & smooth operation and efficient resource management.
  •  【Wi-Fi Connection】Effortlessly transfer files via the built-in WiFi connectivity, supporting both 2.4G and 5G networks with a transfer speed of 6-10Mbps, eliminating the need for cumbersome cables.

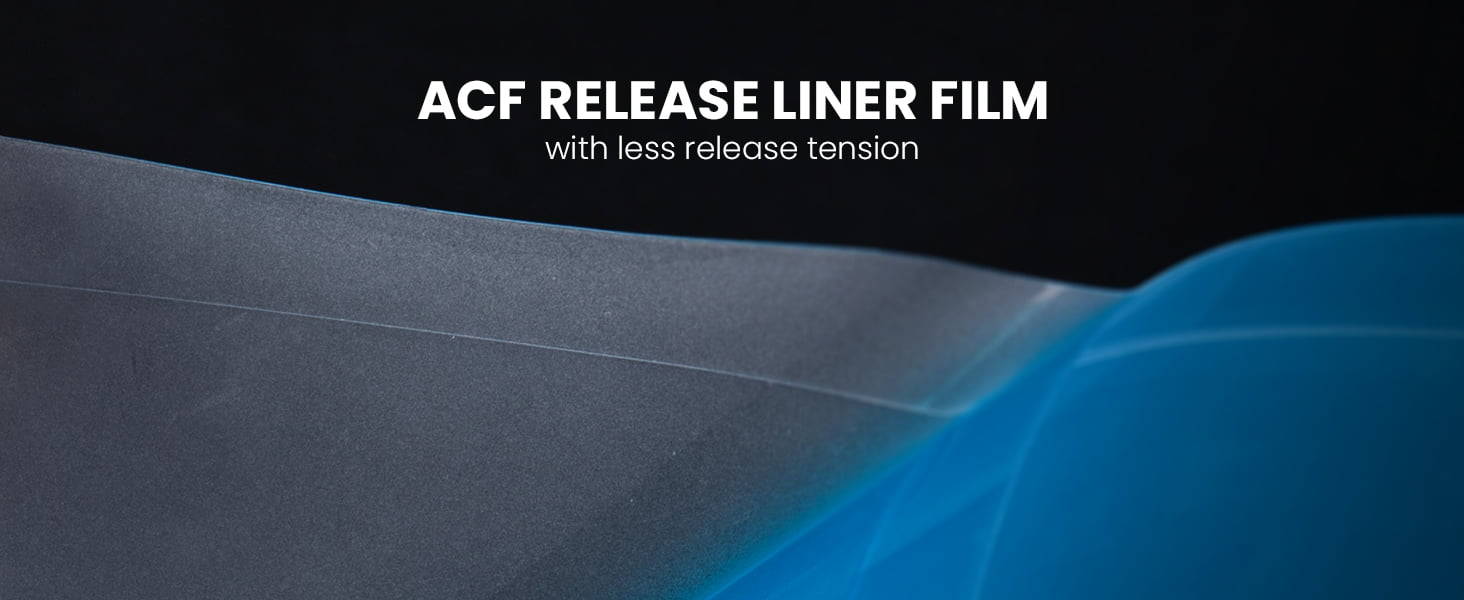

  • 【Effortless Leveling】The 4-point hassle-free leveling system makes setup a breeze, and after one leveling, no need to repeat leveling,  ensuring perfect prints every time. The laser-carved surface on the build plate offers improved adhesion, reducing the risk of print failures. Brand new ACF release liner film with less release tension for a high printing success rate even at a faster printing speed.
  • 【User-Friendly Touch Screen】Navigate easily with the 4-inch HD IPS touch screen with a resolution of 800*480 pixels and support for 12 languages, making operation a breeze for users of all skill levels.
  • 【Purified Printing Environment】The plug-in air purifier with an upgraded activated carbon filter that effectively filters out resin odor during printing. This feature enhances the overall printing experience and provides a healthier environment for you.



















ELEGOO MARS 4 Ultra 9K MSLA 3D Printer













9K Accuracy with Stunning Detail







The ELEGOO Mars 4 Ultra offers exceptional printing quality and details. It features a 7-inch 9K Mono LCD with 8520*4320 resolution that captures every tiny detail, allowing you to produce highly detailed models with an incredible 18 microns XY precision.

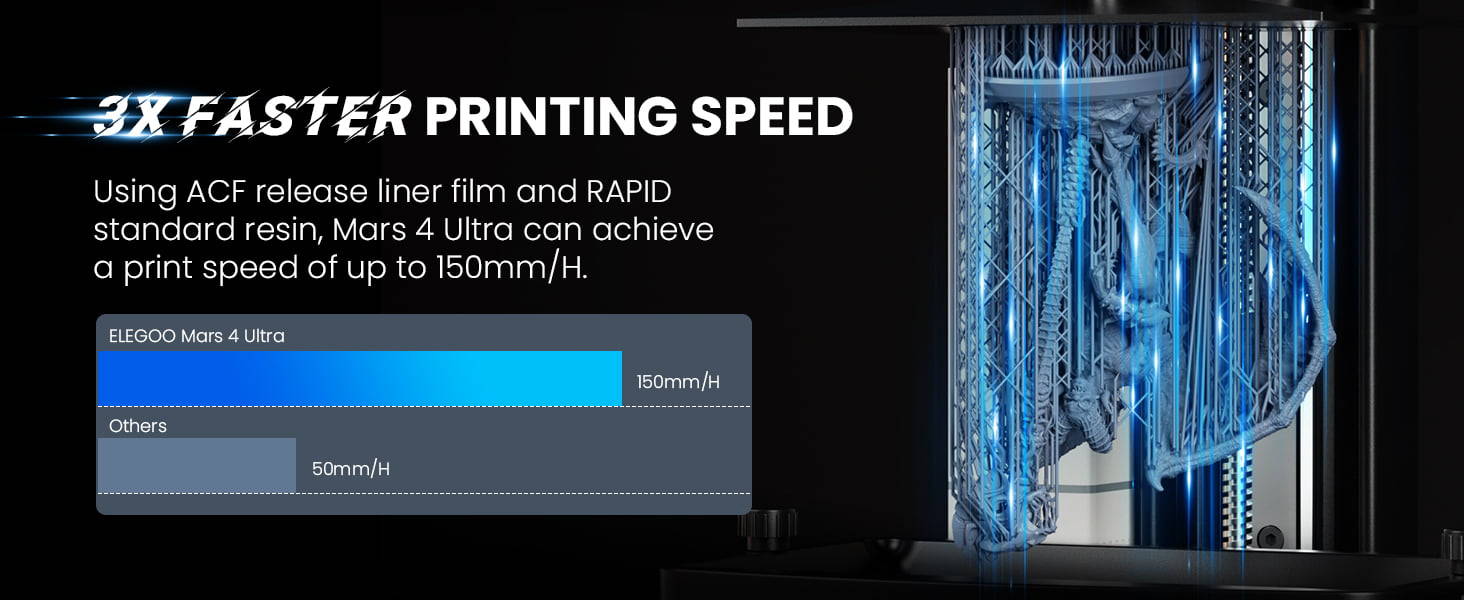

Mars 4 Ultra's fast printing capabilities are equally impressive, allowing you to achieve a print speed of up to 150mm/H with ACF release liner film and the upcoming ELEGOO FAST standard resin. This 3x faster printing speed enables you to produce high-quality models with incredible speed and efficiency.

























High-Speed Wifi Transfer









The brand new Linux OS with built-in 4G RAM supports Wi-Fi transfer, with a transmission speed of 6-10Mbps. Plus, it is compatible with both 2.4G and 5G networks, making file transfer a breeze from your computer or mobile device. The detachable Wifi antenna is conveniently placed on the side of the printer's Z-axis, making it easy to connect to your network.

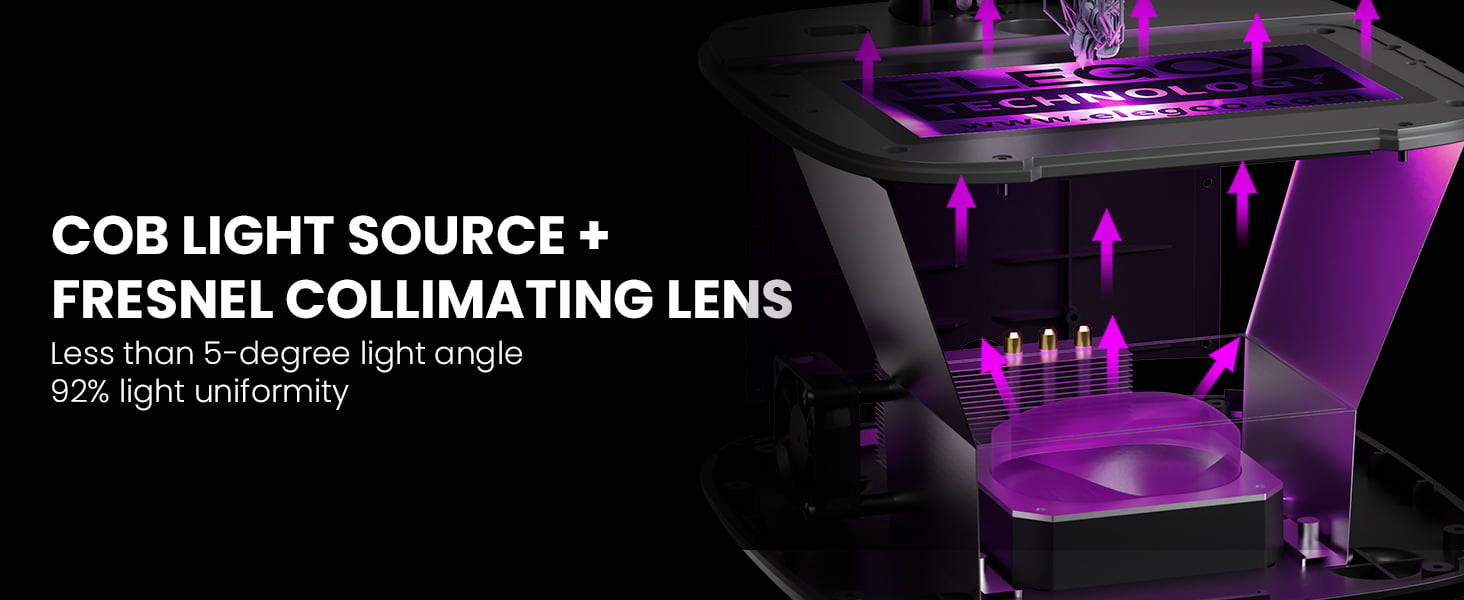

COB Light Source + Fresnel Collimating Lens









Experience vertical and uniform exposure of 405nm wavelength beam thanks to the COB light source and Fresnel collimating lens, which provides consistent curing across the entire build area with less than a 5-degree light angle and 92% light uniformity. This ensures that your models have a smooth and even surface finish.





















Stable Printing Performance

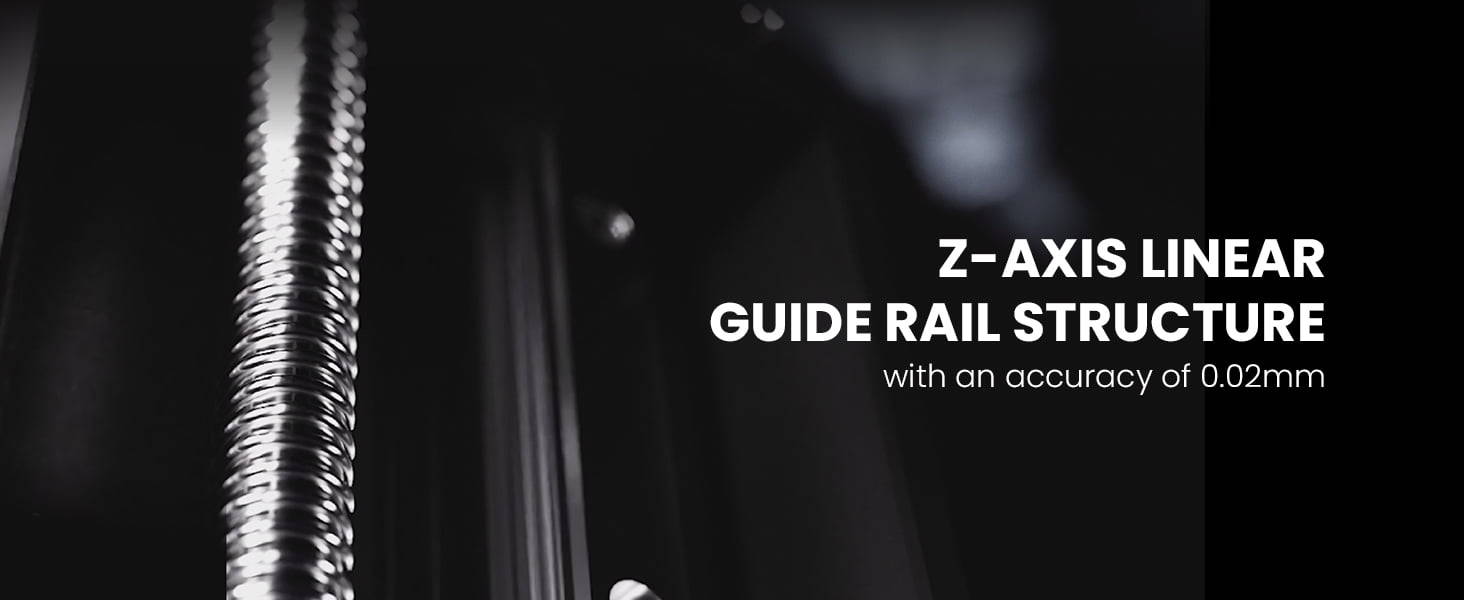

The Z-axis adopts a linear guide rail structure with an accuracy of 0.02mm, ensuring precise and stable movement to help eliminate riffles on final prints and produce smooth and delicate surfaces on your models.

The 4-point leveling system with four clockwise-tightening screws is design to eliminate the need for repeated leveling after one-time leveling, saving you time and effort.

The build plate has a laser-carved surface to enhance adhesion during the printing process, even when printing large models.





















Improved Printing Experience









There is a large cooling fan and heat-conducting copper tubes positioned next to the COB light source for rapid heat dissipation. This feature not only enhances the printer's performance but also extends its service life.

The upgraded air purifier has a protective plastic case to safeguard the built-in activated carbon filter during transportation and effectively remove resin odor during printing.

The printer comes with Voxeldance Tango Slicer, which offers both static mode and dynamic mode (including smooth and high-speed mode) to improve your printing efficiency. The open-sourced GOO slice file format is compatible with third-party slicing software, such as CHITUBOX and Lychee Slicer.

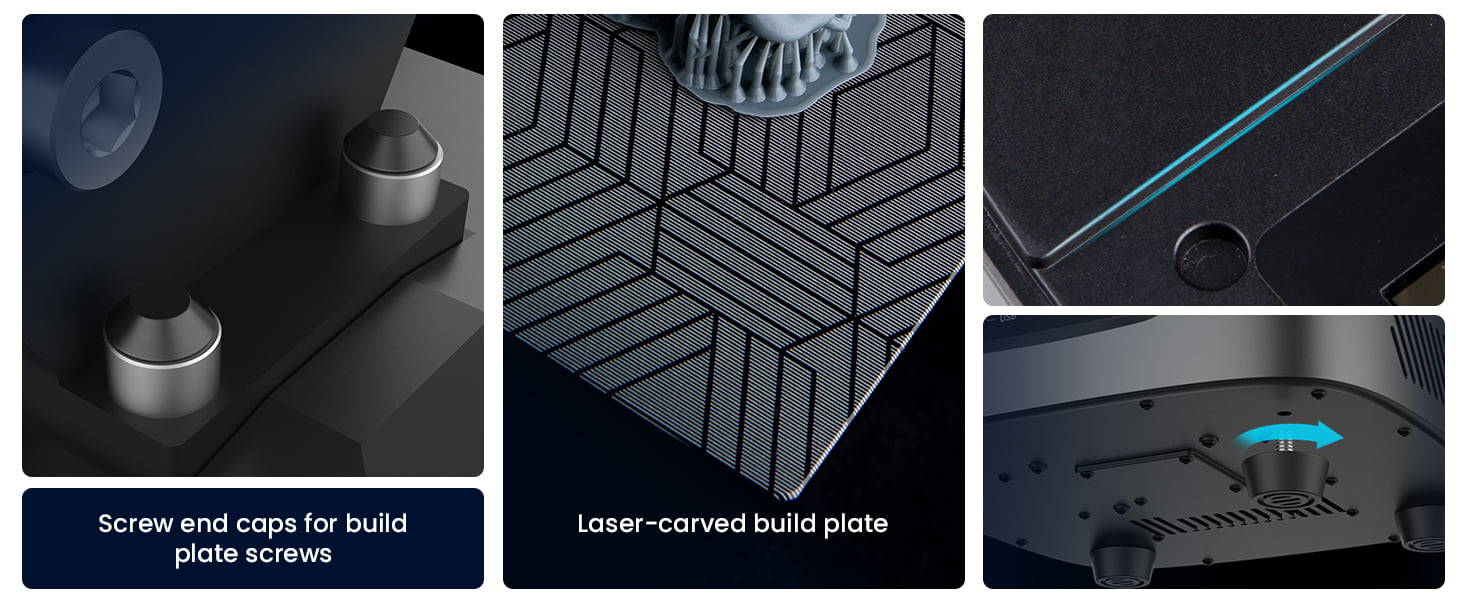

Thoughtful Details









Mars 4 Ultra comes with an all-metal machine body to enhance the printer's stability and durability, making it capable of withstanding the rigors of frequent use. The printer's sleek and modern design also adds a touch of aesthetics to your workspace.

The printer's mid-plate is designed with a raised step to keep the resin from flowing inside the printer, which protects the printer's internal components from damage and ensures a clean workspace.

The build platform screws have screw end caps for easier cleaning, which saves your time and effort during post-processing and maintenance.

The adjustable foot pads for improved stability ensure that the printer remains stable on uneven surfaces.































                                                                                                                                                   TEKNİK ÖZELLİKLER

 Sistem  EL3D-4.0  Teknoloji   MSLA
 Kontrol  4.0 inç Kapasitif Dokunmatik Ekran  Işık Kaynağı   COB + Fresnel Mercek (dalga boyu 405nm)
 Dilimleyici  Chitu Box & Voxeldance Tango  XY Çözünürlük  18*18 um (8520*4320)
 Bağlanabilirlik  USB & Wifi  Z Ekseni Hassasiyeti  0.02mm
 Katman Kalınlığı  0.01-0.2mm  Baskı Hızı  30-70mm/s
 Power   100-240V 50/60 Hz 24V 3A  Baskı Hacmi  153.36mm(E)*77.76mm(B)*165mm(Y)
 Yazıcı Boyutu 227mm(E)*227mm(B)*443.5mm(Y)  Paket Boyutu  565mm(E)*270mm(B)*285mm(Y)
 Net Ağırlık   7 KG  Nominal Ağırlık   8.6 KG
